4-Port 10 / 100Base-Tx and 1-Port 100Base-Fx Fiber Optic Managed Fiber Switch

Name: 4Port 10 100BaseTx and 1Port 100BaseFx Fiber Optic Managed Fiber Switch
Brand: Fiberroad
Price: 1 USD

Brand Name : Fiberroad

Certification : CE ISO

Place of Origin : ShenZhen China

MOQ : 1PCS

Price : Pls send request details

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs/Month

Delivery Time : 2-3 workdays

Packaging Details : Standard neutral or brand packing

Wavelength : 850nm/1310nm/1550nm

MAC : 2K

CPU : 150Mhz or above

Input Voltage Range : 9-15V/DC

Operating Temperature : 0 ℃ ~ 45 ℃

Operating Humidity : 10%~90% RH no condensing

Contact Now

4-Port 10 / 100Base-Tx and 1-Port 100Base-Fx Fiber Optic Managed Fiber Switch

This Fast Ethernet Optical Fiber Switch has one 100M Fx port and four 10/100M UTP ports. Customer can choose different Fx specification according as his demand, such as Multimode or Single-mode, Single fiber or Dual fiber and Single-mode 20-100km etc. The product is possessed of stable performance, excellent quality and reasonable price. It is applicable to use in constructing of Optical Fiber Ethernet network.

• Support 4 port 10/ 100M auto-detect Half/Full duples RJ45 ports and 1 fiber port.
• Support WEB-based network management.
• Support port VLAN and Tag VLAN. ( 8 Groups ).
• Support data packet length up to 1552 bytes.
• Support MAC address auto-learning.
• Support IGMP Snooping.
• Support IEEE 802.1p priority tags.
• Support DSCP.
• Automatic MDI/MDI-X configuration.
• Support bandwidth control.
• Support for hardware Load Default button to restore the default value.

Standards and Protocols Supported	IEEE802.3 , IEEE802.3u , IEEE802.3x IEEE802.1Q
Wavelength	850nm/1310nm/1550nm
Distance	Dual Fiber MM : 2km Dual Fiber SM : 20/40/60/80/ 100km Single Fiber SM : 20/40/60/ 80km
MAC	2K
CPU	150Mhz or above
Memory	16MB or above
Input Voltage Range	9-15V/DC
Consumption	Max.6W
Operating Temperature	0 ℃ ~ 45 ℃
Storage Temperature	-40 ℃ ~ 70 ℃
Operating Humidity	10%~90% RH no condensing
Storage Humidity	5%~90% RH no condensing
Dimensions:	232mm * 142mm * 45mm

Product Tags:

fiber optic network switch

managed fiber switches

Quality 4-Port 10 / 100Base-Tx and 1-Port 100Base-Fx Fiber Optic Managed Fiber Switch wholesale

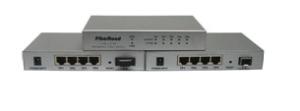

4-Port 10 / 100Base-Tx and 1-Port 100Base-Fx Fiber Optic Managed Fiber Switch Images
