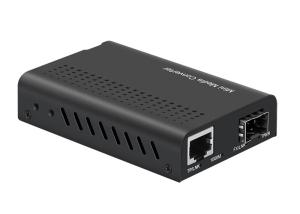

Multi Mode SFP Media Converter 9k Super Data Packet Transmission
SFP Media Converter Features:
• Conversion between auto-adaptation 10Base-T, 100Base-TX or 1000Base-T and
1000Base-SX/LX , full duplex 1000Mworking pattern.
• With distinct HIC solution, low-temperature-rise chip, no need of cooling system,
realization of flow control, decrease of broadcast storm.
• With famous brand optical-electronic-integration module providing excellent optical and
electrical properties to ensure reliable data transmission and long working life.
• Supporting broadcast filtering, address auto-learning and auto-updating, and
store-and-forward operating mechanism.
• Supporting full-duplex flow control or half-duplex back pressure working pattern, along
with Auto-negotiation.
• Supporting 9kbyte super data packet transmission By store and forwarder mode.
• Providing indicator lamps for link-loss, electrical and optical link diagnosing, dynamic data
transmission and full / half duplex, data rate.
• With more than 50,000 hours MTBF, complying with telecom operating standard.
SFP Media Converter Technical Parameter:
|
Technical Parameter:
|
|
Access Method:
|
10/100Mbps
|
|
Standard:
|
IEEE802.3 , IEEE802.3u, IEEE802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1d
|
|
Wavelength:
|
850nm/1310nm/1550nm
|
|
Distance:
|
Dual Fiber MM : 2Km
Dual Fiber SM : 10/20/30/50/80Km
Single Fiber SM : 20/40/60Km
CAT5 : 100m
|
|
Conversion Method:
|
Media Conversion, Store-and-Forward/straight through
|
|
MAC Address Table:
|
1 K
|
|
Buffer Size:
|
1Mbit
|
|
Flow Control:
|
Duplex : flow control ; Half duplex : back pressure
|
|
Time Delay:
|
Store-and-Forward : 9.6us , Straight-through : 0.9us
|
|
BER:
|
<1/1000000000
|
|
LED Indicator Lamps:
|
TP 100 , FX 100 , FX LINK/ACT, TP LINK/ACT, , FDX, POWER
|
|
Power Supply:
|
DC5V 1A (external power) , AC220 0.5A /DC-48( internal power )
|
|
Power Dissipation:
|
<2.5W
|
|
Operating Temperature:
|
0 ~ 50 ℃
|
|
Humidity:
|
5%~90%
|
|
Storage Temperature:
|
-40~ 70 ℃
|
|
Dimension:
|
25mm (H)* 70mm (W)* 93mm (D)
|
Order information:
Model No. Description
FR-1501SFP 10/100/ 1000M SFP Media Converter
