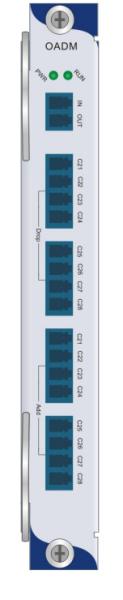

OADM MUX DEMUX

  • 1
  • 2

Brand Name : FiberRoad

Model Number : FR8000-OADM

Place of Origin : ShenZhen

MOQ : 1unit

Price : Pls send request details

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs/Month

Packaging Details : Standard neutral or brand packing

Channel Number : 4

Channel Spacing : 100Ghz

Center wavelength Accuracy (nm) : ±0.11

Channel Passband (@-0.5dB bandwidth (nm) : >0.3

Directivity (dB) (Input to add, Output to drop : >50

Return Loss （dB） : >45

Delivery Time : 2-3 workdays

Contact Now

OADM MUX / DEMUX
DWDM passive OADM modules are protocol-transparent, so their operation is invisible to both the network and the users. With plug-n-play setup and a design that minimizes budget loss, it can readily and seamlessly integrate into an existing network. The small form factor and power independence allows the module to deploy virtually anywhere.
DWDM passive OADM modules are available in single-sided (East or West) and dual-sided (East and West) confi gurations The FR8000 Passive OADM modules are available with 2, 4, 8 independent wavelengths. Each single-slot highdensity module installs in any Fiberroad‘s chassis. A powered chassis is required only for managed applications.


Product Features
Optical Add/Drop Multiplexing (OADM)
Passive OADM-4 , 8, 16 channels
DWDM C-Band, 100GHz ITU Grid (0.8nm spacing)
Single-side (east or west) or dual-side (east and west)
Versatile topology support
Point-to-point bus
Linear point-to-multipoint
Low insertion losses
Power required only for managed applications
1-slot design with hot-swap support fi ts any FR8000 chassis
Low insertion loss
Power required only for managed applications and LEDs
FR8000 chassis compatibility
Fit FR8000-CH01 1-slot powered chassis
Fit FR8000-CH08 8-slot powered chassis
Fit FR8000-CH16 16-slot powered chassis


Performance Parameters

ParameterValue
Channel WavelengthITU Grid
Channel Spacing100Ghz
Channel Number4 Ch8 Ch
Center wavelength Accuracy (nm)±0.11
Channel Passband (@-0.5dB bandwidth (nm)>0.3
Insertion Loss (dB)In—Drop@drop2.03.2
Add---Out@add2.03.2
In---out@other2.55.0
Add/Drop Channel Ripple (dB)<0.3
Isolation ChannelAdjacent>25
Non-adjacent>45
Inertion Loss Temperature Sensitivity (dB/℃)<0.005
Wavelength Temperature Shifting (nm/℃)<0.002
Polarization Dependent Loss (dB)<0.1
Polarization Mode Dispersion (ps)<0.1
Directivity (dB) (Input to add, Output to drop,>50
Return Loss (dB)>45
Maximum Power Handling (mW)500
SizeOTU Module26.5(W)x252(D)x195(H)(mm)
1-slot chassis482.6(W)x350(D)x43.6(H)(mm)
8-slot chassis482.6(W)x360(D)x109(H)(mm)
16-slot chassis482.6(W)x360(D)x261.6(H)(mm)
Opterating Temperature (℃)-5~+75
Storage Temperature (℃)-40~85

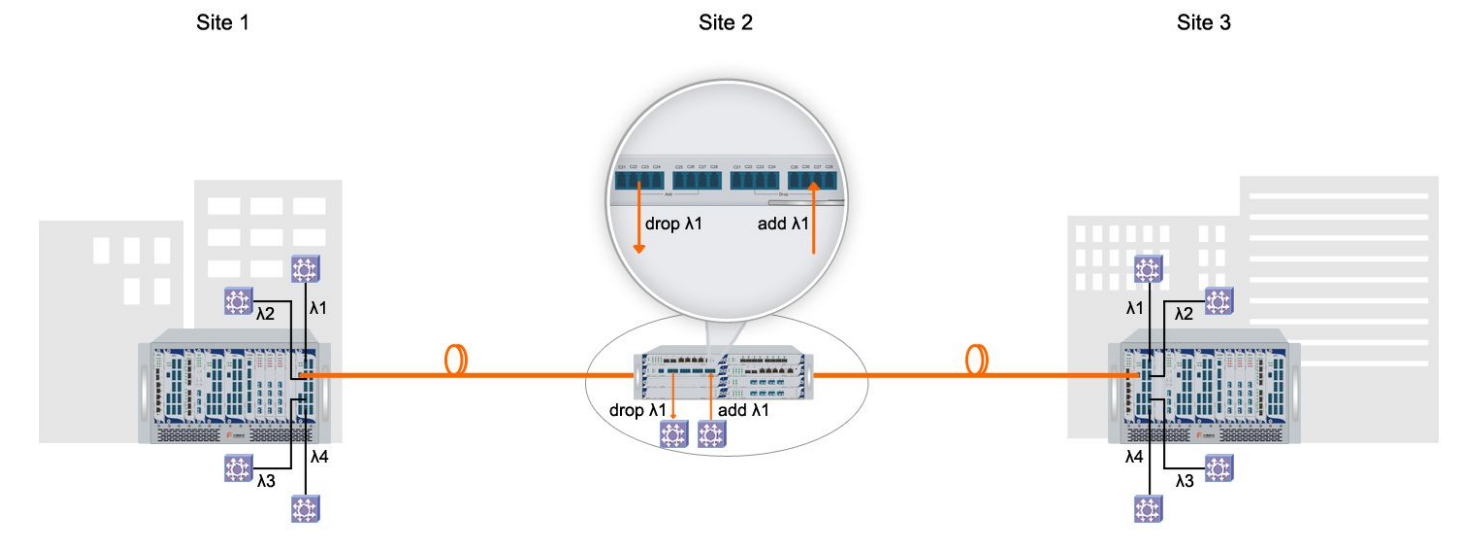

Typical passive OADM module application

OADM MUX DEMUX

Ordering Information:
DWDM SINGLE-SIDED OADM

ModelDescriptionMax. InsertionLoss (dB)
Add/DropIn---out@other
FR8000-OADM11- Channel Add/Drop Module Single Fiber , SINGLE-SIDED ,East or West 1ch,C-Band Channels C21~C60 Any 1ch,Custom made1.2
FR8000-OADM22- Channel Add/Drop Module Single Fiber , SINGLE-SIDED ,East or West 2ch,C-Band Channels C21~C60 Any 2ch,Custom made1.5
FR8000-OADM44- Channel Add/Drop Module Single Fiber , SINGLE-SIDED ,East or West 4ch,C-Band Channels C21~C60 Any 4ch,Custom made2.5
FR8000-OADM88- Channel Add/Drop Module Single Fiber , SINGLE-SIDED ,East or West 8ch,C-Band Channels C21~C60 Any 8ch,Custom made3.0



DWDM DUAL-SIDED OADM

ModelDescriptionMax. InsertionLoss (dB)
Add/DropIn---out@other
FR8000-OADM111- Channel Add/Drop Module Single Fiber , DUAL-SIDED ,East and West 1ch,C-Band Channels C21~C60 Any 1ch,Custom made1.2
FR8000-OADM222- Channel Add/Drop Module Single Fiber , DUAL-SIDED ,East and West 2ch,C-Band Channels C21~C60 Any 2ch,Custom made1.5
FR8000-OADM444- Channel Add/Drop Module Single Fiber , DUAL-SIDED ,East and West 4ch,C-Band Channels C21~C60 Any 4ch,Custom made2.5
FR8000-OADM888- Channel Add/Drop Module Single Fiber , DUAL-SIDED ,East and West 8ch,C-Band Channels C21~C60 Any 8ch,Custom made3.0
